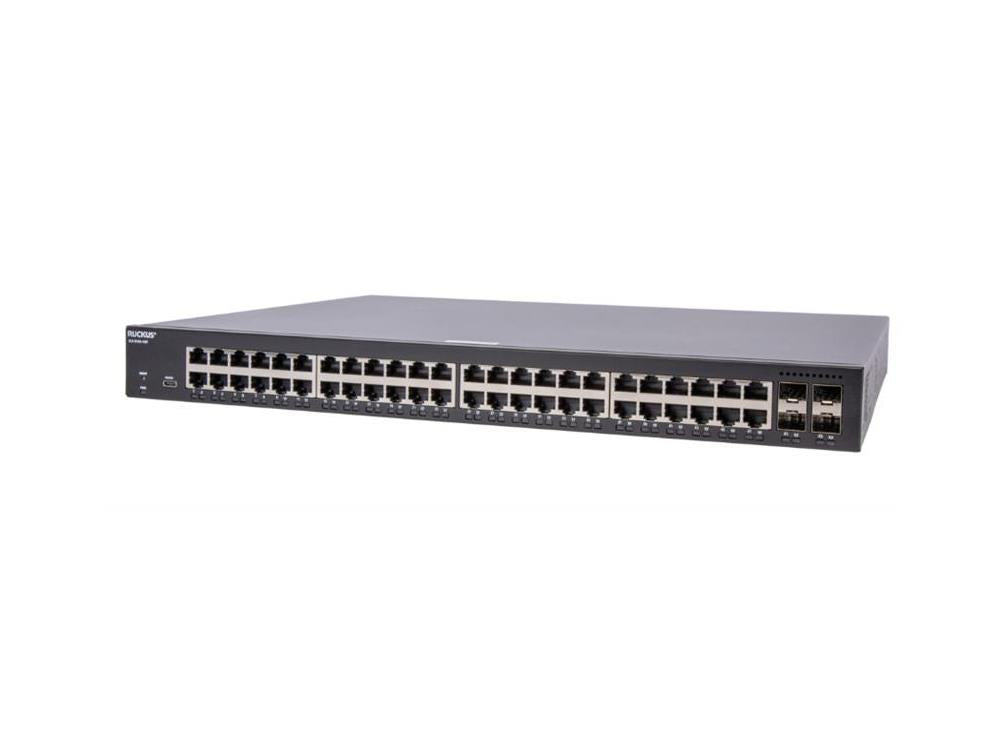

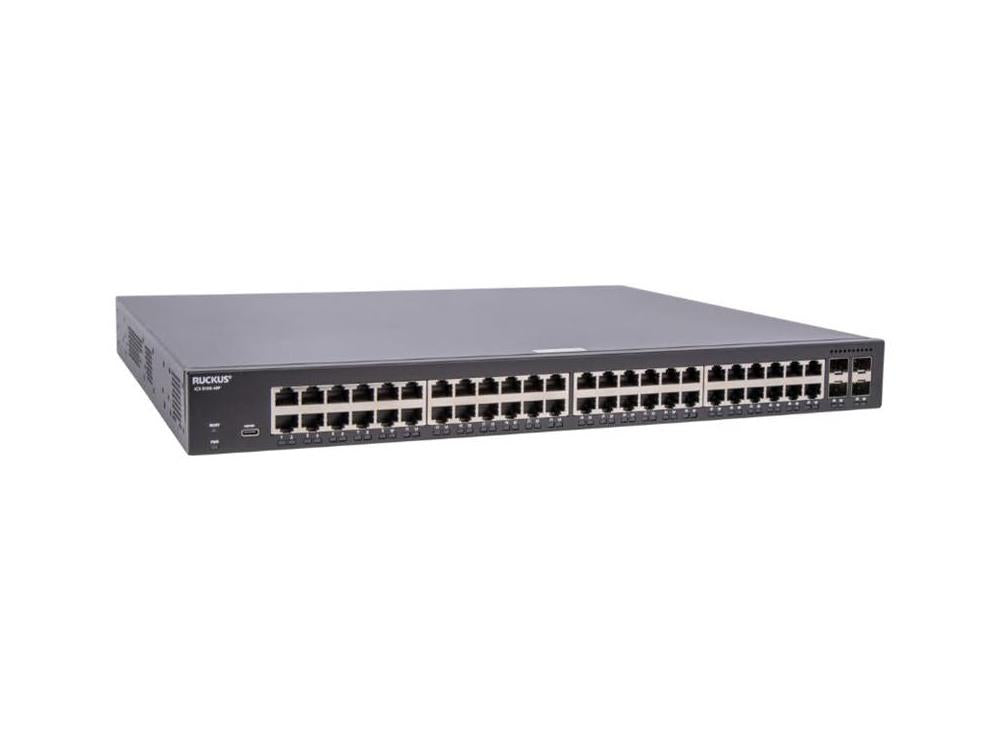

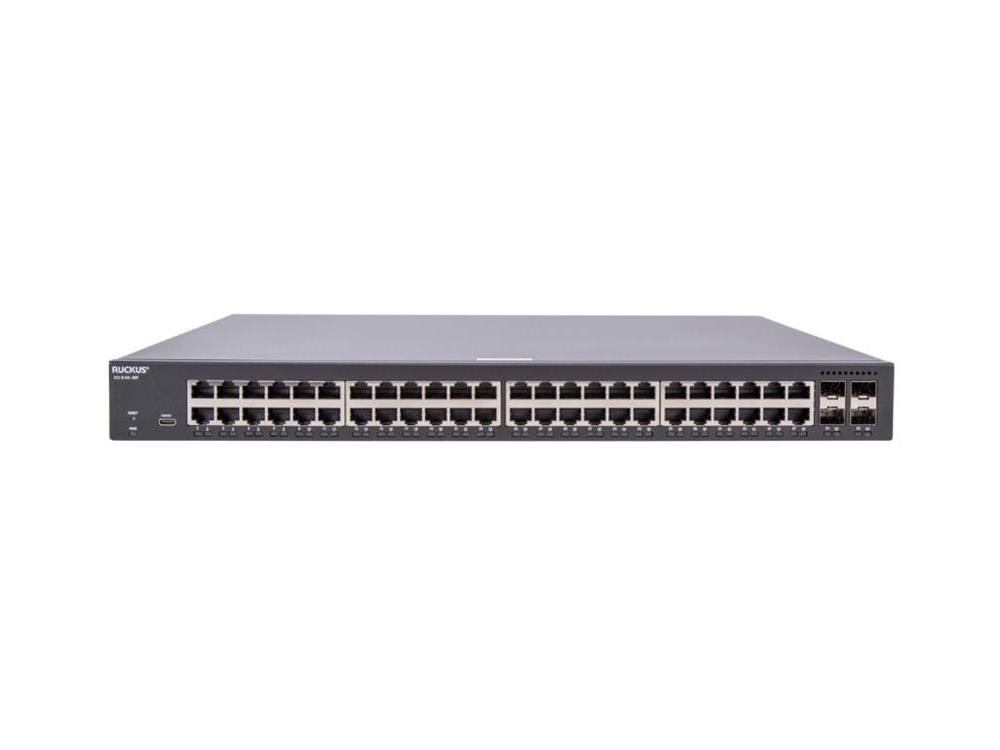

RUCKUS WIRELESS RUCKUS ICX 8100 48-Port Gigabit PoE+ Managed Switch, 802.3at, 1RU
$5,391.80
Available
Technical specificationsReview every available product attribute- Condition
- New
- Model
- ICX8100-48PF-X
Product information
Product data
Technical specifications
Every available public product attribute, organized for quick review.
No specifications match your search.
| Memory & storage | |
|---|---|
| Flash Memory / Installed Size | 8 GB |
| Jumbo Frame Support | 9216 bytes |
| Max Storage Temperature | 70 celsius |
| Min Storage Temperature | 40 celsius |
| Ram / Total Installed Size | 2 GB |
| Display & connectivity | |
| 10/100/1000base T Ports | 48 |
| Interfaces | 48 10/100/1000 Mbps RJ45; 4x 1/10 Gbps SFP/SFP+ uplinks; USB Type-C port |
| Media Layer Supported | Layer 2 |
| Network Device Type | Switch |
| Networking / Ports Qty | 53 |
| Networking Compliant Standards | 802.1s, 802.1x, 802.1w, 802.1D, 802.1ab |
| Power Over Ethernet (Poe) Support | yes |
| Uplink Port | 4x 1/10 Gbps SFP/SFP+ uplinks |
| Power & compatibility | |
| Max Power Consumption | 920 Watt |
| Poe Power Consumption | 740W |
| Power / Device Type | Power Supply |
| Power / Voltage Required | 100 to 240 VAC @ 50 to 60 Hz |
| Physical & environmental | |
| Depth | 14.57 Inch |
| Height | 1.73 Inch |
| Item Weight | 6.39 Kg |
| Mac Address Table Size | Maximum MAC addresses 32K |
| Max Operating Temperature | 45 celsius |
| Min Operating Temperature | 0 celsius |
| Width | 17.32 Inch |
| Additional specifications | |
| Brand | RUCKUS WIRELESS |
| Model / MPN | ICX8100-48PF-X |
| Model | ICX8100-48PF-X |
| Package Contents | RUCKUS ICX 8100 1RU Switch, 48 10/100/1000 Mbps PoE+ 802.3at, 30W Class 4 ports, 4 10GbE SFP+ uplink-ports, 740W PoE budget. Power cord not included, Maximum MAC addresses 32K, RADIUS/TACACS/TACACS+ |
| Authentication Method | RADIUS/TACACS/TACACS+ |
| Coo | VIET NAM |
| Country/Region Of Manufacture | VIET NAM |
| Data Link Protocol | 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Encryption Algorithm | AES |
| Features | Complete range of access switches covering a wide array of deployment scenarios; Silent Operation, no distracting noise |
| Manufacturer | RUCKUS WIRELESS |
| Mtbf | 561966hr |
| Product Family | ICX HW |
| Product Type | network_equipment |
| Remote Management Protocol | DHCP; Syslog; SSH |
